How to repair BMW FRM in a fast & cheap way

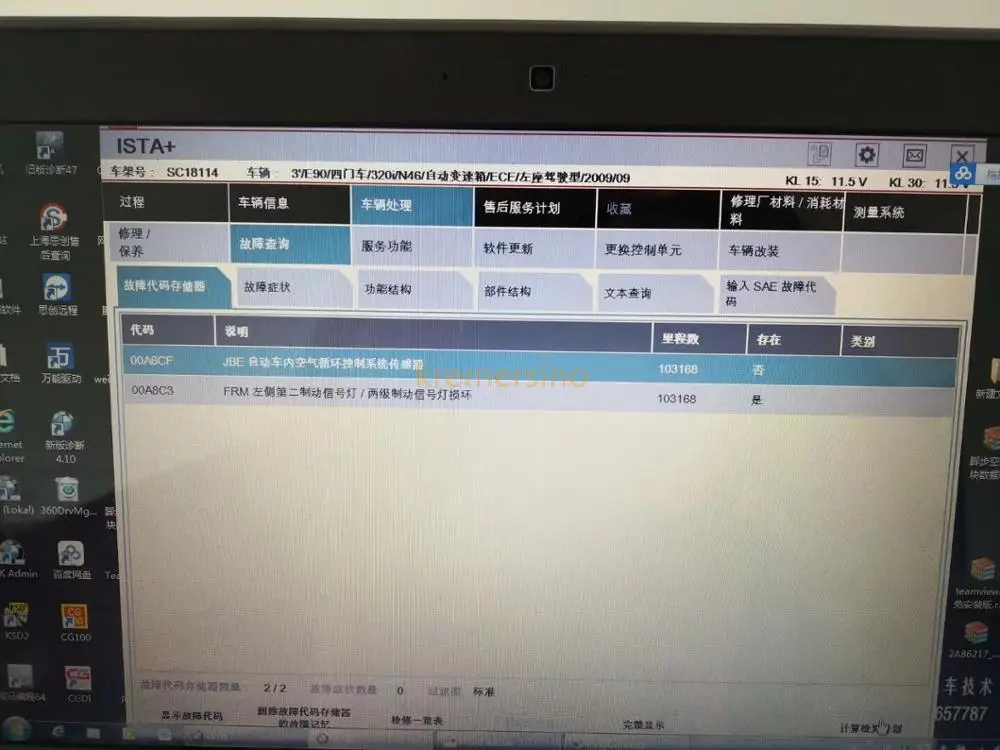

When your BMW's headlight, steering light or window lifter out of control, it may caused by the broken of headlight, steering light, lifter itself, but in most case, these malfunctions should be caused by a faulty FRM.
To locate the problem is always the most important as well as the first step you need to do.

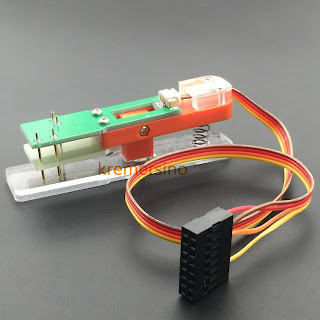

Then customer can use our KR60022 testing fixture together with programmer VVDI, XP or CG100 to check whether the problem  happens at FRM or not in a fast way.

How to do,
1,

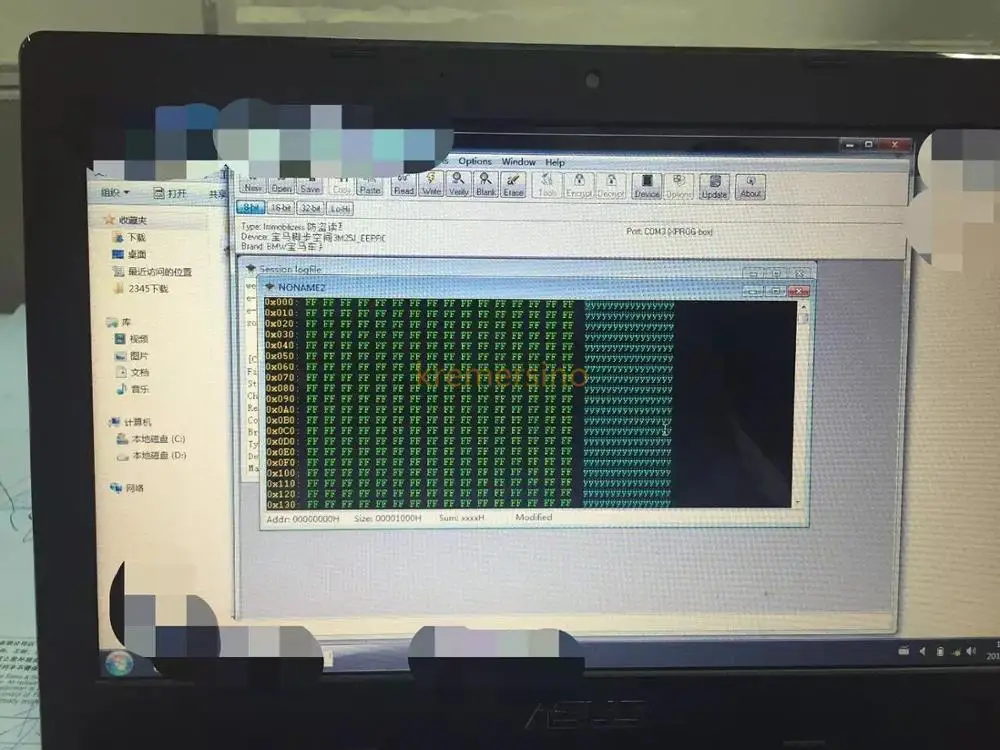

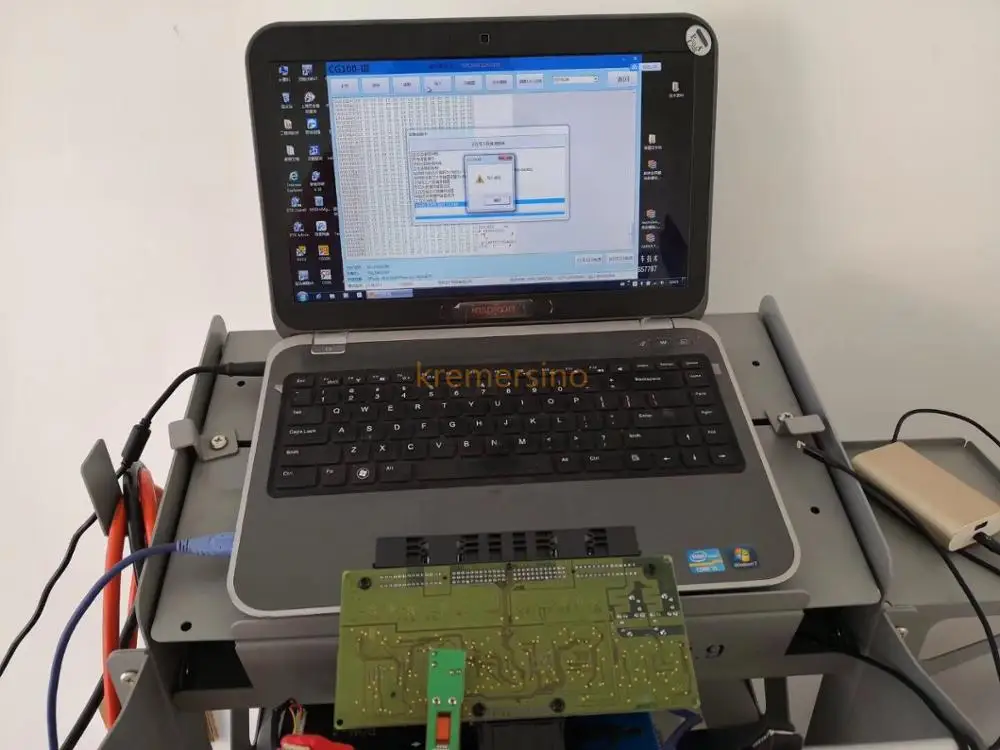

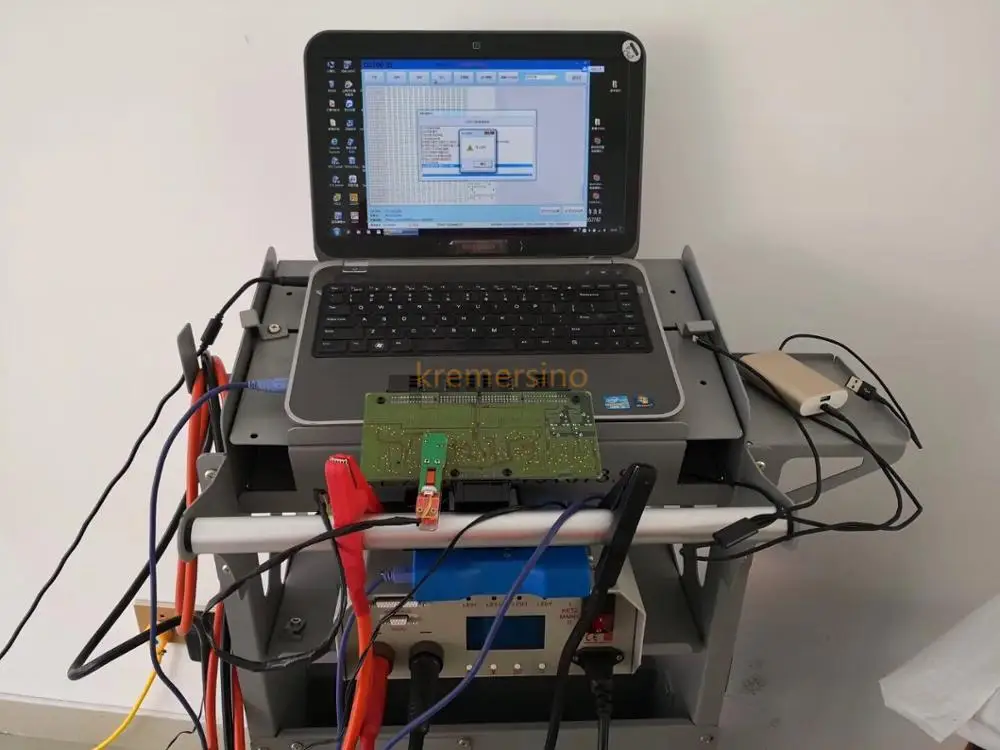

Connect KR60022 with programmer VVDI, XP or CG100 to check the MCU (MC9S12XEQ384). If the MCU is empty or losing date, congratulation, you get it.
If the MCU is good, then you have to check headlight, steering light or others one by one.

2,

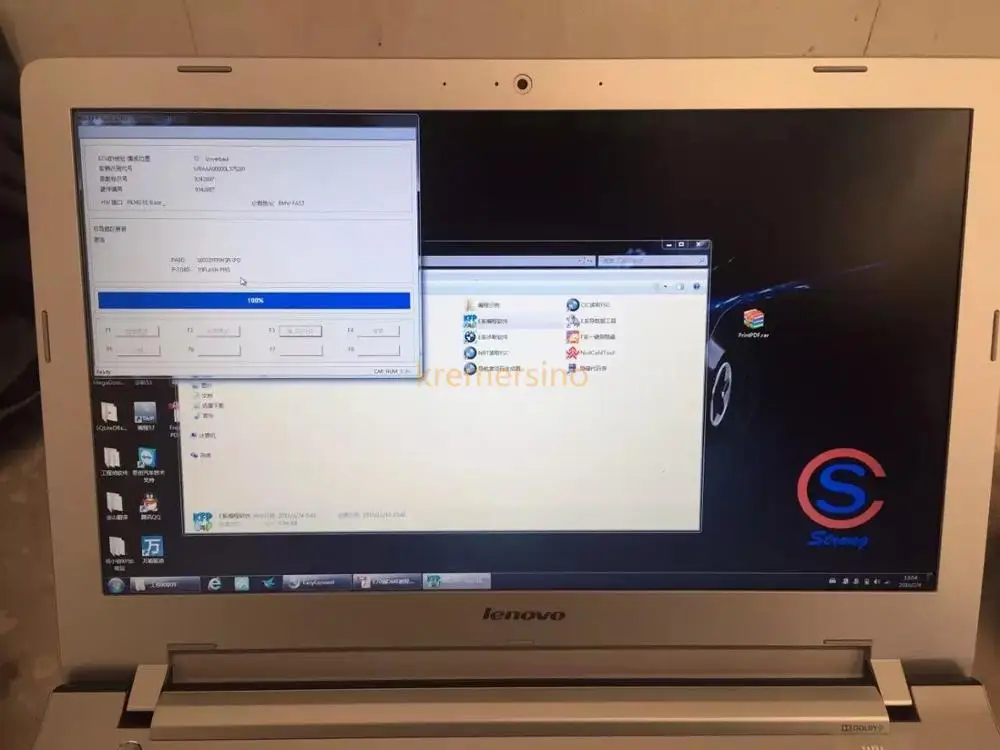

To replace a new FRM is quite expensive.  But according to our experience, the only part you need to exchange is the MCU on it. So to buy a new MCU(MC9S12XEQ384), use the X431pro、Autel 908、Golo to program it with full data, soldering the new MCU back and test it again.


Please note that the KR60022 is just a connection tool, and it can not program itself.
If you need a new MCU 9S12XEQ384, you can contact us too.
